Silicon steel sheet longitudinal cutting machine



• Scope of application：
• Remark：
• Product category：silicon steel slitting line
• Watch Product Videos
• PDF Download

Product description

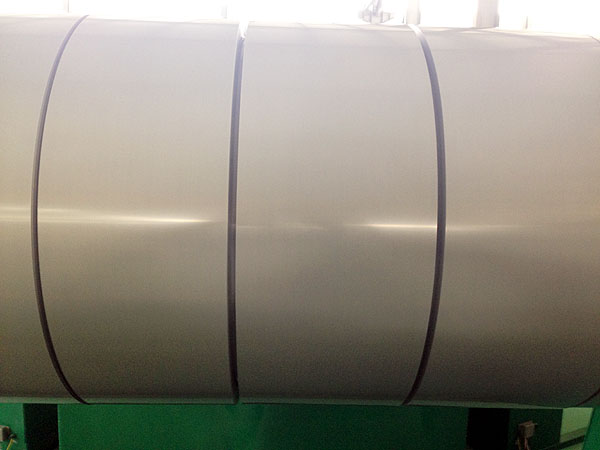

Samples of silicon steel sheet cutting:

1: Thickness of roll slitting silicon steel sheet or low carbon steel sheet   0.2~0.5mm

2:Width of the rolling slitting sheet  40~1250mm

3:Strip Burr:           ≦0.02mm

4:Width tolerance of strip burr ≦±0.2mm

5:Speed of slitting line                       0~70M/min

6:Decoiler drum standard diameter                  Φ500mm

7:Recoiler drum standard diameter                 Φ500mm

8：Max load capacity of Decoiler                 ≦6T

9：Max load capacity of recoiler              ≦6T

10：Max activity diameter of decoiler                 Φ530mm，

11 Min activity diameter                        Φ470mm。

12：Max activity diameter of recoiler Φ510mm，

13 Min activity diameter            Φ470mm。

14：Guide pressure device working pressure  0.3-06Mpa



15 Outside diameter of the spindle for the roll slitting machine  Φ120mm



16   Lifting height                             350mm，



17V shape tray maximum load capacity of the lifting moving vehicle   6T。

                                 17：General motor power32KW，

Decoiler,rolling cutting machine,recoiler AC motor driven by the frequency converter.

18：Total length 11m,width 5m,covering the area of 55 square meter.

19：Total weight                       11T。



20：Working height level：                   1M。

 Main construction

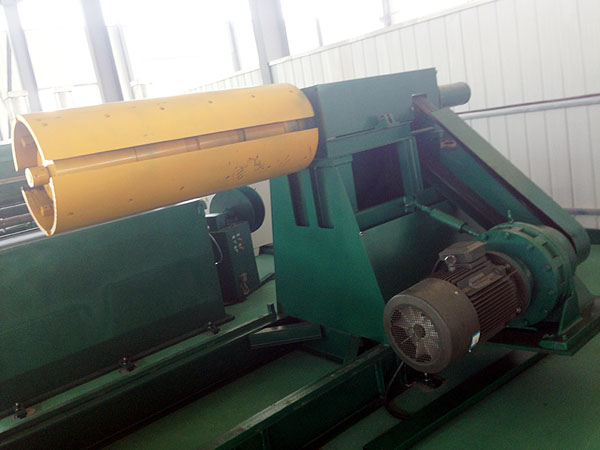

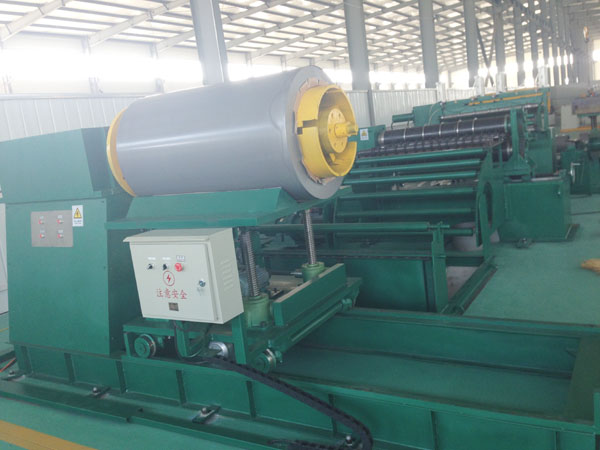

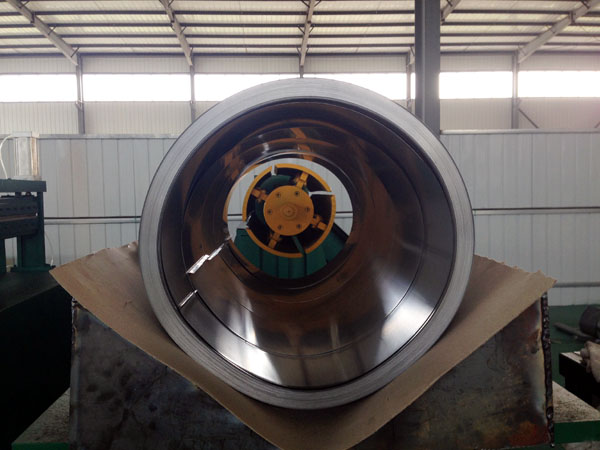

1：6Ton Hydraulic pressing decoiler

2：6Ton hydraulic pressing recoiler

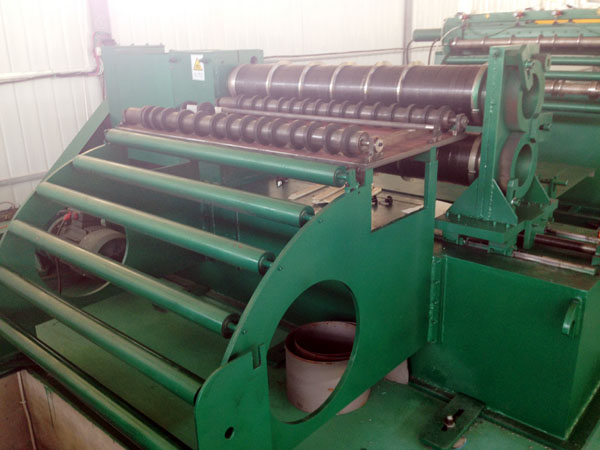

3、Variable frequency roll slitting machine

4、Double pneumatic guide pressing device

5：6Ton new type electric feed-in and feed-out lifting vehicle

6、Electric control panel

7、Hydraulic station

8、Grinding machine

9、  YG20 carbide scissors

  ★ The configuration of the sensor, length measuring device, intelligent digital display meter, the cutting length that required can be preset,(unit precision:0.1m) sound alarm when reaching the number.
