Three - dimensional triangular roll core closed foil winding



Three - dimensional triangular roll core closed foil winding
  • Product name:Three - dimensional triangular roll core closed foil winding
  • Scope of application:
  • Remark:
  • Product category:Transformer winding machine
  • Watch Product Videos
  • PDF Download



Product description

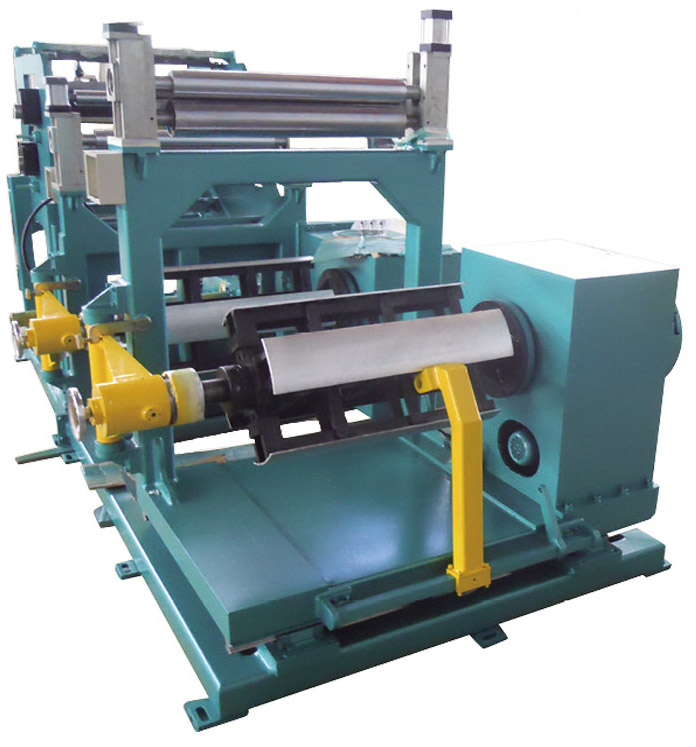

BRJ1000 / 800/600/400/300 three-dimensional triangular roll core foil winding machine (double / single layer)

1) for the all-digital foil winding machine, mainly for the S13 transformer foil around the production.

2) The machine features: the tension from the open-book brake tension, and the traditional passive tension system compared to its advantages is stable tension, dynamic and static tension, foil and layer insulation tape in the winding or back to apply tension, to avoid loss caused by coil Elastic, at any time to adjust the size of the pressure to ensure that the whole process of winding tension stability.

3) correction system using the sensor, through the motor dynamic correction. The system has high precision and fast response, ensuring that the coil is wound neatly.

4) foil tension, layer insulation tension, coil parameters and winding state and other digital settings and display, intuitive and accurate.

5) open-book brake, motor (linkage state), you can foil the tension feedback to the winder or grid control, brake tension tension and reliable.

6) Because of the use of compressed air, the brake produces tension, the machine without hydraulic system, the whole machine is not easy to wear consumables, fewer points of failure, maintenance and repair costs, mechanical adjustment point, production efficiency, mechanical friction noise Hydraulic pollution, environmental protection.

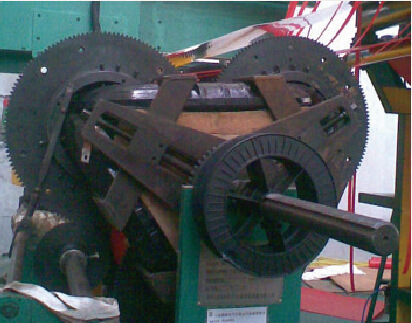

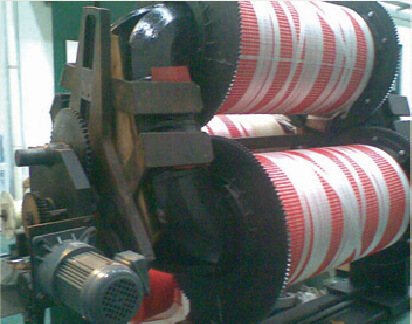

7) winding device using gear transmission around the linear guide before and after the left and right movement, automatic transfer of iron core with automated high-performance production.

Model

BRJ-1000

BRJ-800

BRJ-600

BRJ-400

BRJ-300

Width of foil(mm)

300-1000

250-800

250-600

50-400

50-300

Thickness of foil(mm)

Copper foil:0.5-2.0

Aluminum foil:0.5-3

Copper foil:0.5-2.0

Aluminum foil:0.5-3

Copper foil:0.5-2.0

Aluminum foil:0.5-3

Copper foil:0.5-2.0

Aluminum foil:0.5-3

Copper foil:0.5-2.0

Aluminum foil:0.5-3

Diameter of coil(mm)

Φ1200

Φ1200

Φ1100

Φ920

Φ850

Tension of foil tape(N)

7800N Stepless

And adjustable

6000N Stepless

And adjustable

5200N Stepless

And adjustable

2600N Stepless

And adjustable

2600N Stepless

And adjustable

Activty scope of barrel(mm)

460/520mm

460/520mm

460/520mm

460/520mm

460/520mm

Winding mode

Horizontal

Horizontal

Horizontal

Horizontal

Horizontal

Winding speed r/min

0-24 Stepless

0-24 Stepless

0-24 Stepless

0-24 Stepless

0-24 Stepless

Winding power

15KW

15KW

11KW

11KW

7.5KW
