NC Swing Shear Cut-to-length Line



NC Swing Shear Cut-to-length Line
  • Product name:NC Swing Shear Cut-to-length Line
  • Scope of application:
  • Remark:
  • Product category:Transformer Core Cutting Machime
  • Watch Product Videos
  • PDF Download



Product description


Product

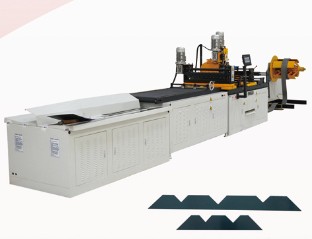

NC Swing Shear Cut-to-length Line

Model
JN-4003C NC Swing Shear Cut-to-length Line
Model:HJ-3003/4003/5003/8003-C


Introduction and Usage
This machine is mainly used for both straight&mitred cutting&punching
silicon steel laminations for transformer or reactors automatically.
Cut the sillicon steel to be kinds of shape,such as  right angle,bevel angle,
Straight angle& bevel angle,punched,puched V shape etc.
This machine also has step-lap function.


Specification
Cutting length:200-5000mm
Cut-to-length precision:+-0.02mm
Cutting burr height:Max0.02mm
Punching burr height:Max0.03mm
Cutting speed:25-50 pieces per minute

Characteristics

1.Cutting power:adopts domestic famous brand inverter motor,high speed,low noise,long life.
2.Feeding power:adopts big torque AC servo motor,quick response,high precious positioning,low
noise,small thermal braking,long life.
3.Rail positioning:step motor dring,ball screw&linear guide transmitting,central positioning,
quick and precious.
4.Motion control:by advanced PLC,HMI operation,simple and convenient.
5.Lamination collecting:transmitting bell plus unloading rack.
6.Life assurance:Imported world famous linear guide and ball screw,high precious milling parts
and high precision assembly,extend life of the machine.
